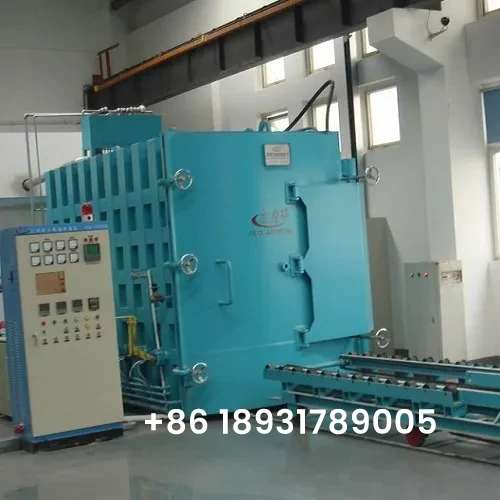

Vacuum Annealing Furnace

Vacuum annealing furnace for wound cores or transformer ring cores


Vacuum Annealing Furnace Specifications

Main components of equipment
  • Model: WZT-120-9 horizontal water-cooled vacuum annealing furnace

  • Scope of application: Suitable for vacuum annealing heat treatment of annular coiled iron core; the iron core is not oxidized after annealing, eliminating internal stress and reducing iron losses.

  • Booting form: stainless steel single-layer loading, the furnace loading volume is about 5 tons per unit.

  • Complete set of equipment:

    Vacuum annealing furnace (including inner liner, material rack))

    Material truck inlet and discharge mechanism

    Electric cabinet

    Track

    120 kW transformer (including copper bar connection device)

    Vacuum unit
