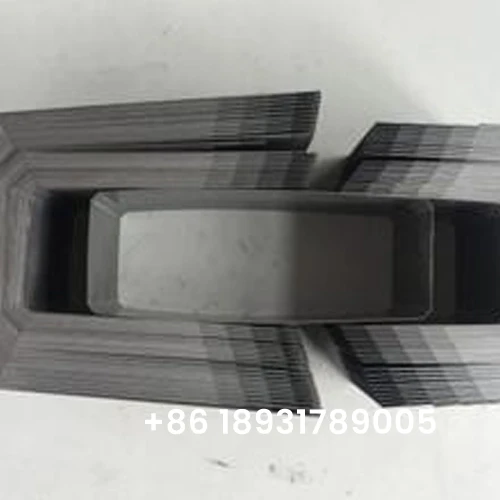

The Unicore machine, technically referred to as a distributed gap wound core forming machine, is a fully automatic system designed to produce rectangular open cores. This unicore machine's advanced manufacturing process creates transformers with superior magnetic properties, lower energy loss, and significantly reduced operational noise. By replacing traditional, less efficient methods, the innovative technology of the Ausin Unicore machine sets a new industry standard for high-performance core production. With its user-friendly interface and programmable settings, the Unicore machine allows manufacturers to quickly switch between different core dimensions to meet diverse client requirements with ease.
| Parameter | Value | Description |
|---|---|---|
| Voltage Range | 10kV ~ 35kV | High voltage applicability. |
| Capacity | 30 kVA ~ 3150 kVA | Supports Oil, Dry, and Traction transformers. |
| Decoiler Type | Single/Double Head | Flexible material feeding. |
| Decoiler Capacity | 2 Tons | High payload. |
| Expanded Diameter | 450 mm ~ 520 mm | Coil expansion range. |
| Single Ribbon Max. Width | ≤ 400 mm | Width for single processing. |
| Double Ribbons Max. Width | ≤ 185 mm | Max width when processing two ribbons. |
| Speed Control | Adjustable | Adjusts based on operator skill. |
| Blade Material | Cemented Carbide | High durability and cutting precision. |
| Bending Angle | 45° | Standard silicon steel sheet bend. |
| Overall Size | 7m × 2m × 1.8m | Machine footprint. |
The electrical control system for the Unicore machine utilizes German Rexroth servo motors, ensuring high precision and reliability during operation.
All of the electrical components of Unicore machine are for the French Schneider.
All the cylinder components of Unicore machineare for Japan SMC.
The Ausin Unicore machine series features high-performance models such as the JH-400 and JH-600, offering versatile solutions for precision transformer core manufacturing. By integrating automated control systems, each Unicore machine maintains exceptionally tight tolerances and reduces material waste, making it an essential asset for high-volume industrial operations.
