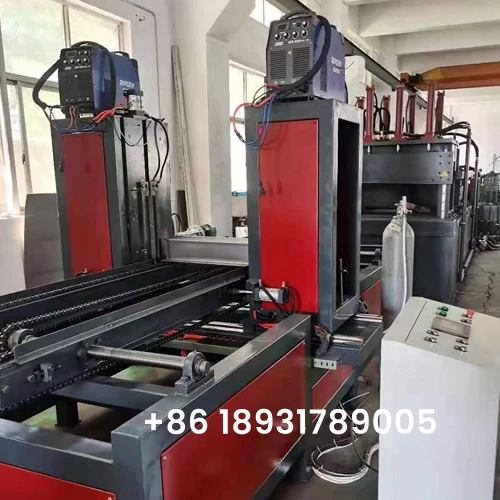

Transformer Corrugated Tank Fin Welding Machine

ZDH 1600-400 is the company's research and development of high-efficiency, good results, easy-to-operate automatic welding equipment. Imported brand PLC and touch screen digital automatic control, plus manual control. Automatic control can directly input parameters to set the number of waves, wave height, pitch, welding speed, etc., for each piece.

The welding gun is driven by a servo motor to move the ball screw up and down to achieve the best welding effect.

The Transformer corrugated tank fin welding machine equipment greatly improves the production efficiency of the corrugated oil tank of the transformer and can obviously reduce the labor cost and improve the product quality with the use of the LBW-1600-400 automatic corrugated sheet forming machine produced by our company. We use special material clamping devices, with high temperature resistance, not prone to wear, and long service life.

Transformer Corrugated Tank Fin Welding Machine Specifications

Specifications
Corrugated sheet Width:300-1600mm
Corrugated Height:40-400mm
Welding Speed:2-3pcs/min
Weld Penetration:≥2mm
Input voltage:380V
Air pressure regulation range:0.2~0.8Mpa
Argon arc welding machine(Optional):Panasonic


Transformer Corrugated Tank Fin Welding Machine Video

Transformer Corrugated Tank Fin Welding Machine Video
