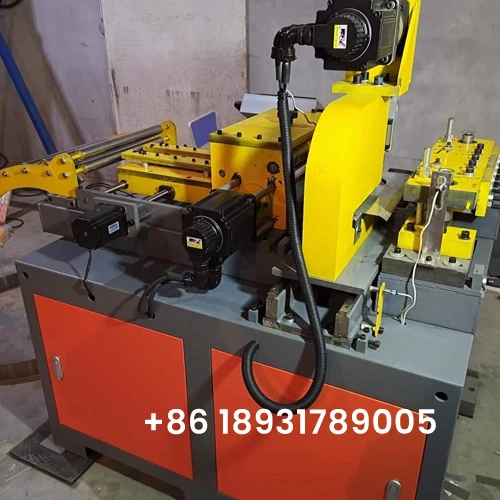

Straight Core Cutting Machine

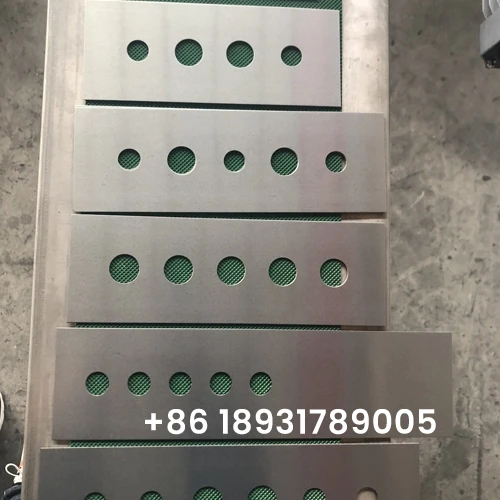

Straight core cutting machine designed for cutting the reactor core, transformer core lamination in right angle, straight cutting, different size holes. In the PLC screen, the width, length, the hole numbers, cutting speed etc. can be pre-set in the interface Delta screen, very simple and convenient. This machine is a servo motor control technology with high speed, low noise, and a long life.

Straight Core Cutting Machine Specifications

Structure Main technical data of transformer core straight cutting machine
  1. Inverter-controlled decoiler

  2. Automatic center positioning & guiding devices

  3. Cutting Device

  4. Online hole punching device

  5. Control system PLC

  6. Belt transmitting table

  7. Stacking table

No.

Item

Data

1

Model Code

JN2002/3002/5002/6002/8002S

2

CRGO thickness

0.23-0.6mm

3

CRGO coil width

30-800mm

4

CRGO strip Length

4m

5

Cutting length

1-999999mm

6

Cut-to-length tolerance

+/-0.02mm

7

Cutting angle tolerance

+/-0.025°

8

Hole position tolerance

+/-0.1mm

9

Burr height

Less than 0.02mm

10

Feeding speed

Max. 100m/min

11

Hole numbers

1-12pcs

12

Cutting speed

1~140 pieces per minute

13

Punching die

6mm-30mm

14

Cutting blade

Carbide alloy

15

Servo motors

Delta


Straight Core Cutting Machine Video

Straight Core Cutting Machine Video
