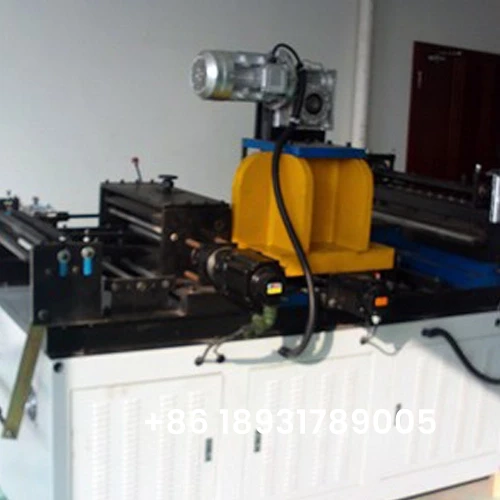

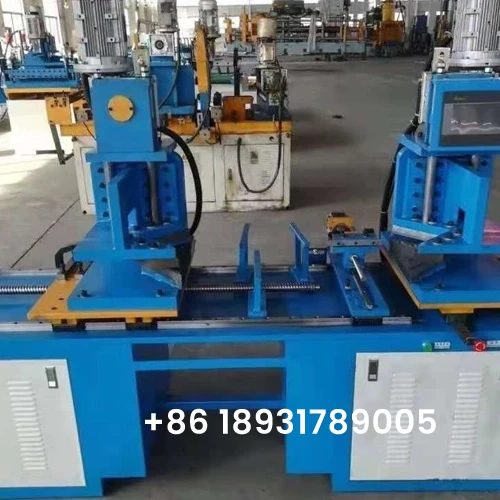

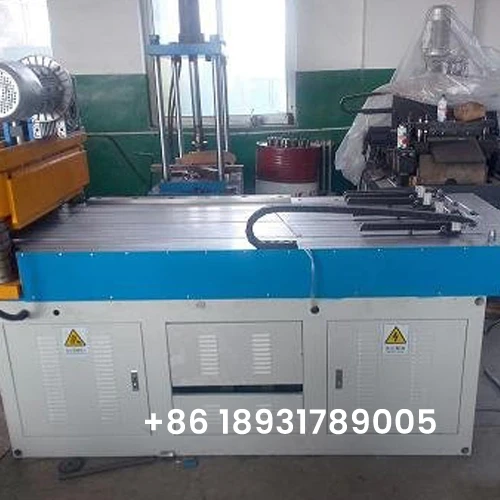

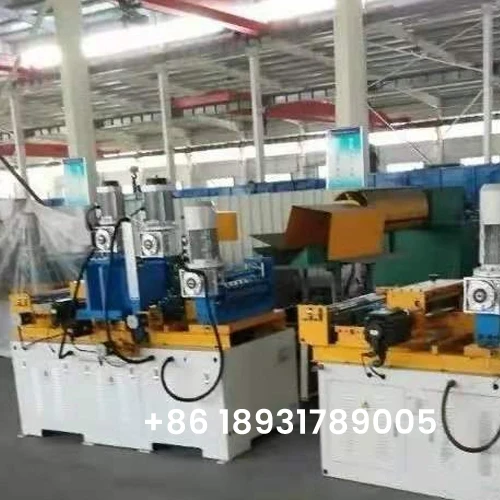

Second Lamination Cutting Machine

This machine is specially designed for cutting silicon steel core laminations.

This machine is mainly used in the right angle cutting of silicon steel sheet, various metal plates and insulating board, and it can be used to cut the segment plate into various right angle sheets.

The function of pre-set length makes good use of waste metal sheets.

The feeding device is servo motor driven. Feeding length can be preset on touch screen.


Second Lamination Cutting Machine Specifications

Specification Characteristics

Cutting length: The length of 1mm-original material size (arbitrary)

Cutting precision: +-0.2mm

Cutting angle: Max0.025 degrees

Cutting burr height: Max0.02mm

Cutting speed: 1-60 pieces per minute

Model: HJ-500/700/1000/1300


  • Cutting power: adopts domestic famous brand inverter motor, high speed, low noise, long life.

  • Feeding power: adopts mechanical hand and large torque synchronous servo motor, quick response, high precious positioning, low noise, small thermal braking, long life.

  • Track positioning: using a single backer positioning, fast and accurate.

  • Motion control: by advanced PLC,HMI operation, simple and convenient.
