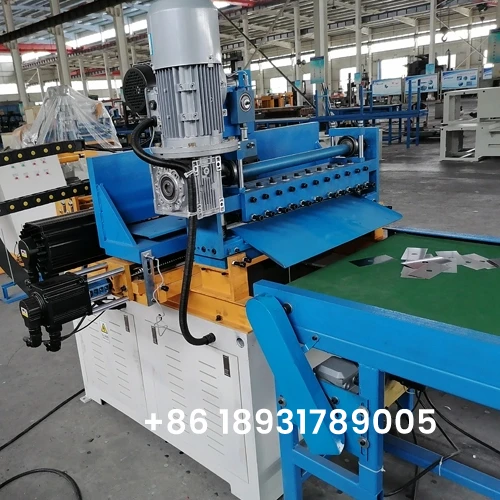

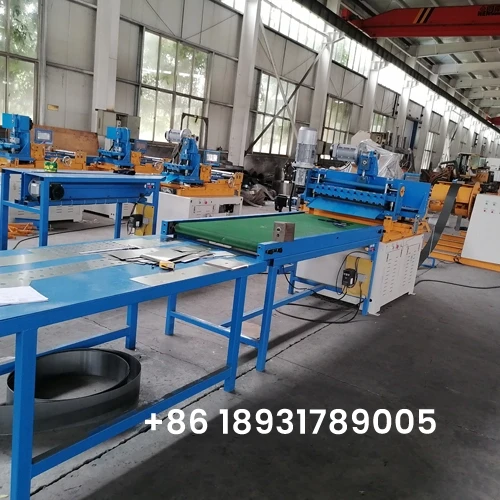

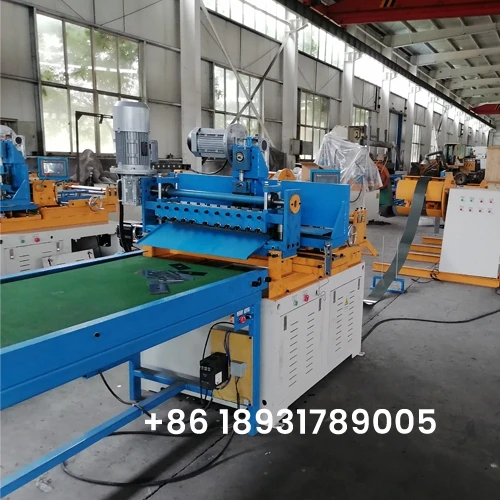

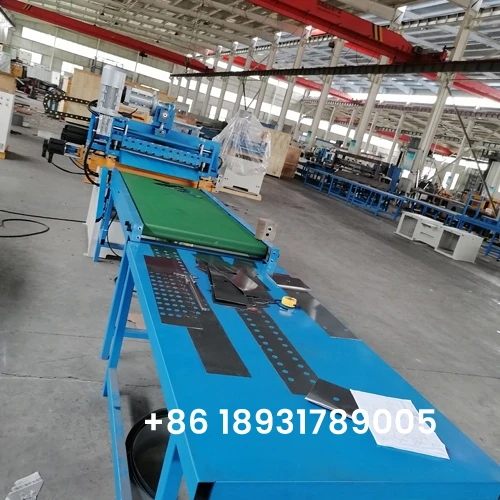

Multi-Holing Transformer Core Cutting Machine

Multi holes core cutting machine produce the right angel 90degre cores and 50 holes per sheet in different rows. Straight cutting and swing shear transformer core cutting machines cut the transformer core/reactor core laminations in different type and more holes. Multi-holing, step lap design, including decoiler device, automatic receiving device, assemble the transformer core column etc. This cutting machine is low cost, good precision, and safe to use. The total machine is 2-meter width, 2-8meter length.

Process silicon steel sheet width from 200mm-800mm.

Multi-Holing Transformer Core Cutting Machine Specifications

Model

JN4003B, JN5003B, JN6003B, JN8003B


Carbide blade cutter life: The new knife can cut more than 1 million times per grinding, at least 20 times grinding, and the punching die can punch more than 200,000 times per grinding, at least 20 times.
Effective cutting work piece width: freely adjustable within 40-600mm.
Processing sheet thickness (mm): 0.23-0.5

Processing length accuracy (mm): ±0.1
Punching burr height (mm)≤0.025
