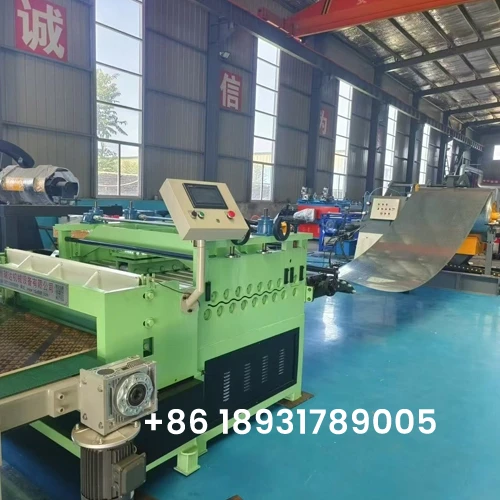

Metal Horizontal Cutting Machine

This equipment is mainly used for leveling and sharing of metal coil (suitable materials: cold rolled plate, electrolytic galvanized sheet, hot sleeping galvanized plate, color coated plate, stainless steel plate, aluminum plate, copper plate, etc.) The utility model has advantages with reasonable design, compact shape, high precision, high efficiency, flexible central positioning and flexible adjustment. The utility model is a special leveling numerical control equipment for various metal coils and can automatically cut the metal coil into conformity with the drawing of rectangular section of various lengths.

Metal Horizontal Cutting Machine Specifications

Specifications Characteristics Auxiliary and support equipment Other special equipment

Model: AN -1000/1300/1500

Shear length: 10mm-5000mm Shear

width: 20 mm -1300 mm Shear

thickness: 0.8-4.0mm

Shearing accuracy: +-0.3mm

Cutting angle: less than 0.05 degrees

Cutting burr: less than 0.05mm

Shearing speed: 2000-20000 seconds/pulse adjustable according to the length of feed.

  • Leveling: use large torque AC synchronous servo motor to drive 11 roller leveling device, leveling and shearing integration.

  • Feeding with high torque synchronous servo motor, with fast response, high precision, low noise, small braking heat loss, long life.

  • Motion control: the use of advanced PLC controller, touch screen operation, simple and convenient.

  • Life guarantee: the equipment standard parts (linear guide rail, ball screw, all kinds of bearings) are imported famous parts, the basic spare parts, assembly accuracy , to maximize the service life of equipment .

  • Leveling machine: used for leveling the plate to improve processing accuracy.

  • Automatic feeding/discharging device: such as hydraulic discharging machine and tensioning feeding rack to realize automatic feeding.

  • Cutting and forming tools: including laser cutting machine, synchronous axis automatic cutting machine, hydraulic shearing machine, rolling door pressing equipment, etc.

  • Advertising gusset machine produces gussets for billboards and supports customized design.

  • Container corner wrapping machine/pallet machine: dedicated to container and pallet manufacturing.

  • Greenhouse film slot equipment: suitable to produce agricultural greenhouse structural parts.
