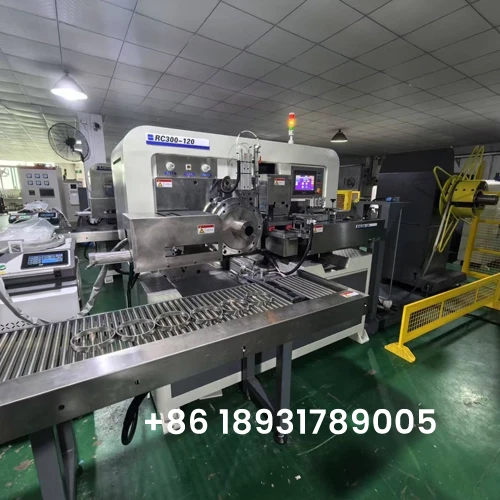

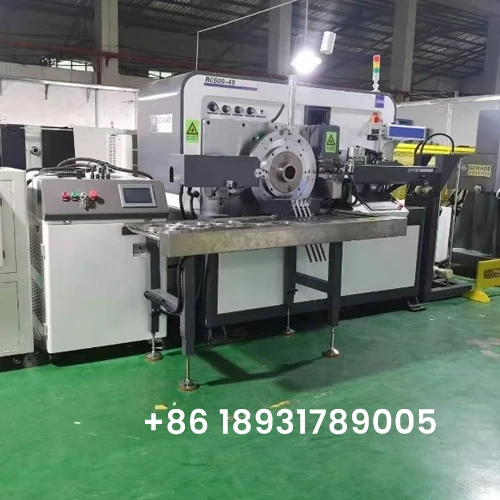

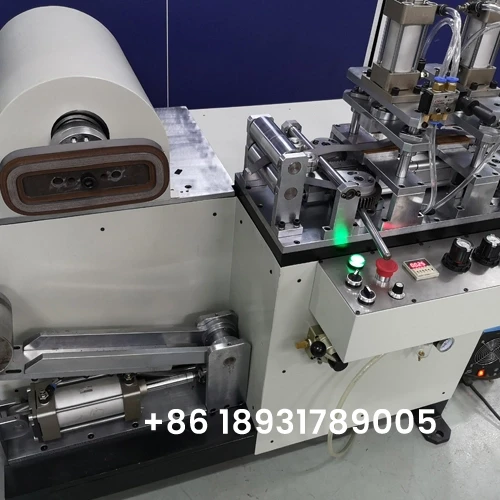

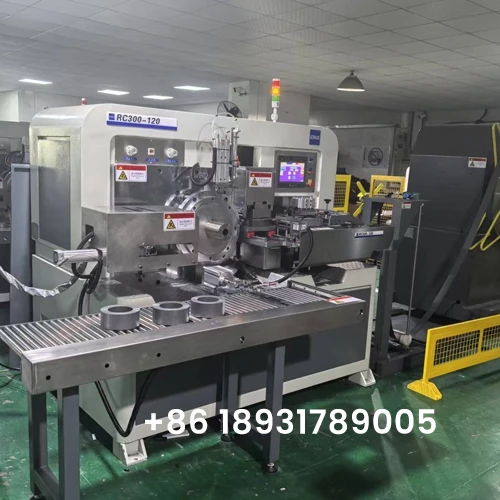

High Speed Core Winding Machine

This production line is special equipment for winding transformer ring cores that can automatically complete cutting, delivery, welding and automatic diameter detection.

These series equipment can wind toroidal and some Square, Rectangle cores.

The feeding device is driven by a servo motor, with high feeding accuracy and convenient feeding distance adjustment.

All movements of the machine are controlled by PLC, and the control and status parameter display adopt a touch screen, with flexible and adjustable parameters, simple operation and strong adaptability. The winding device adopts servo control to ensure smooth start-up, rapid braking, and accurate angle positioning of the winding shaft.

The whole machine adopts high-quality parts, reliable operation, high production efficiency and low maintenance cost.

High Speed Core Winding Machine Specifications

Specifications
Name:High speed silicon steel toroidal core winding machine
Model:RC500-80 and RC100, RC150, RC250, RC300, RC350, RC400
Size:225CM*150CM*190CM
Weight:2800KG
Power supply:380VAC  50/60HZ
Power consumption:1000W
Gas pressure:6-7KG/c㎡
Interface:English
Production function:Toroidal and Square, Rectangle
Servo axis number:six
Inner diameter min:50mm
Inner diameter max:180mm
Max OD:500mm
Width:10—80mm
Thickness:0.15—0.5mm
Core side accuracy:<0.1mm
Decoiler:double head
Material max OD:1200mm
Inner diameter expansion range:450-520mm
Capacity:1Ton
Feeding speed:200m/min
