Fully Automatic CNC Transformer Core Cutting Machine

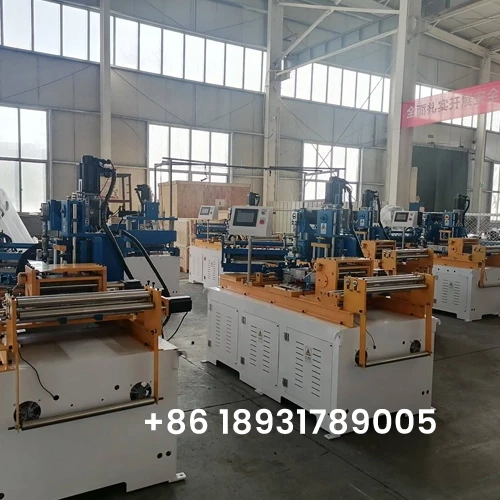

This machine is mainly used for straight & mired cutting &punching, V-shape, feeding rack the Silicon steel laminations, seven step laps, receiving and stack the materials for transformer core or reactors core automatically.

It is controlled by advanced PLC, HMI operation and cuts the silicon steel coil to length as per drawings.


Fully Automatic CNC Transformer Core Cutting Machine Specifications

Introduction Main technical data of transformer core V notching machine This machine also has step-lap function
  1. CNC control, full automatic

  2. Swing shear, online punching, V notching

  3. Step-lap functions max. 7 steps, compact structure

  4. Cutting speed 20-60 pcs/min, usually one 8-hour shift can cut 1 ton lamination strips.

  5. Adopts Delta PLC, touch screen (HMI), inverter, Delta servo motor and drive, high precision, fast speed, good after-sale service.

  6. Cutting blade is carbide alloy 1.2million cuts before grinding.

  7. Full automatic finishing cutting, swinging angle, counting, cutting right angle, trapezoid, parallelogram, fish-head, etc.

No.

Item

Data

1

Model Code

JN-3003/4003/5003/8003-VC

2

CRGO thickness

0.23-0.6mm

3

CRGO coil width

30-800mm

4

CRGO strip Length

200-5000mm

5

Cut-to-length tolerance

+/-0.02mm

6

Cutting angle tolerance

+/-0.025°

7

Hole position tolerance

+/-0.1mm

8

Burr height

Less than 0.02mm

9

Feeding speed

Max. 100m/min

10

Cutting speed

25-50 pieces per minute

11

Servo motors

Full servo motor, imported brand or Chinese famous brand


  • Cutting power: adopts domestic famous brand inverter motor, high speed, low noise, long life.

  • Feeding power: adopts big torque AC servo motor, quick response, high precious positioning, low noise, small thermal breaking, and long life.

  • Rail positioning: step motor, ball screw linear guide transmitting, central positioning, quick and precious.

  • Motion control: by advanced PLC, HMI operation, simple and convenient.

  • Lamination collecting: transmitting bell plus unloading rack.

  • Life assurance: Imported world-famous linear guide and ball screw, high precious milling parts, and high precision assembly, extend the life of the machine.
