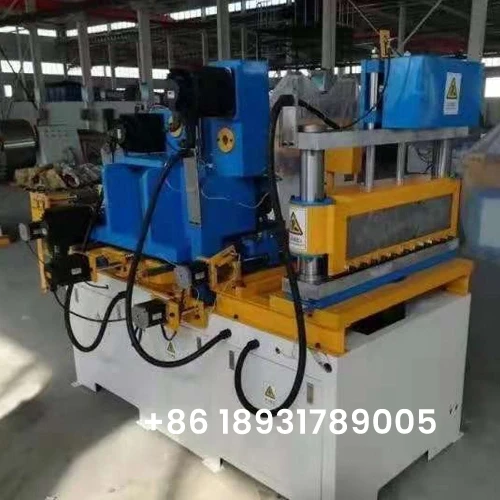

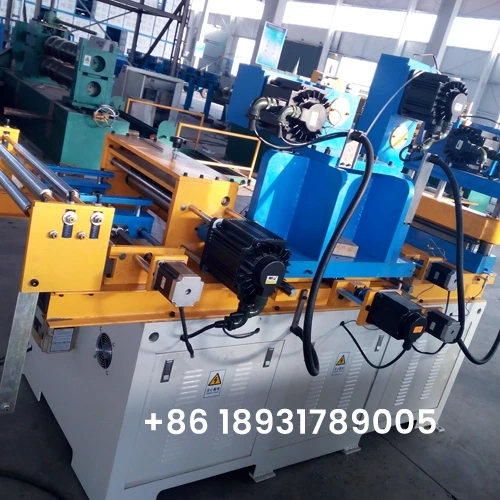

Full Servo O Punching V Notch Step Lap Core Cutting Machine

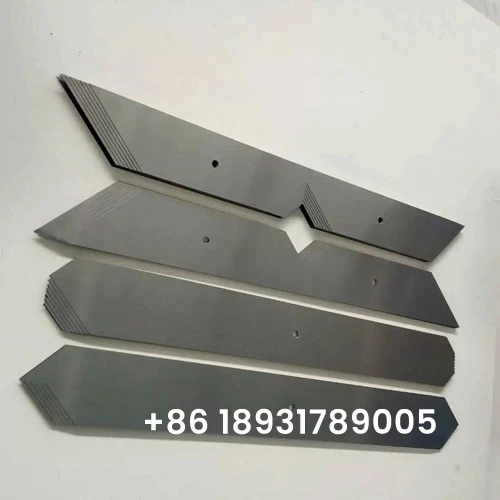

This machine can cut the shape of isosceles trapezoid, right-angled trapezoid, parallelogram, side yoke sheet, center column sheet. The maximum number of punching holes for the parallelogram is six holes and the side yoke shape can be made into three types of steps, one step horizontally, two steps horizontally and vertically. The number of steps for each type can be set from two steps to seven steps, and the maximum number of punching holes is six holes.

Full Servo O Punching V Notch Step Lap Core Cutting Machine Specifications

Introduction Main technical data of transformer core cutting machine

This machine can cut the shape of isosceles trapezoid, right-angled trapezoid, parallelogram, side yoke sheet, center column sheet.

The maximum number of punching holes for the parallelogram is six holes and the side yoke shape can be made into three types of steps, one step horizontally, two steps horizontally and vertically. The number of steps for each type can be set from two steps to seven steps, and the maximum number of punching holes is six holes.

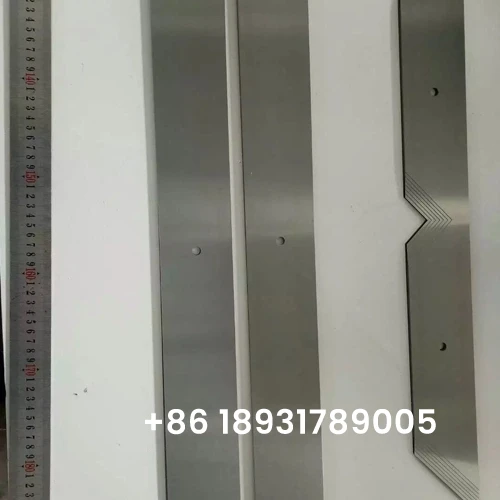

The center limb sheet can be made for three types of steps: one step horizontally, two steps horizontally and vertically. The number of steps for each type can be set from two steps to seven steps, and the maximum number of holes is three holes.


Model: JN3003VCS/JN4003VCS/JN5003VCS/JN6003VCS/JN8003VCS

No.

Item

Data

1

Model type

JN5003VCS

2

CRGOthickness


0.23-0.5

3

CRGOcoilwidth


40-500mm

4

Cuttinglength


1-99999mm

5

Cut-to-length tolerance


±0.1mm

6

Cutting angle tolerance


±0.025°

7

Hole position tolerance


0.03mm

8

Notch position tolerance


0.03mm

9

Burr height

Less than ≦0.03

10

Feedingspeed

2000-200000S/Impulse

11

Production speed

pieces per minute about30 PCS

12

Punching or notching die


Hard alloy

13

Cutting blade

Hard alloy


14


Die&bladelife

More than

Cutting 100million times before grinding

Punching 200thousand times before grinding

15

Motors

All motors Delta from Taiwan

16

Machine dimension

Overall 10m length,2.5m width

17

Material receiving table

Pneumatic flap

18

Machine weight

3 TON


Full Servo O Punching V Notch Step Lap Core Cutting Machine Video
