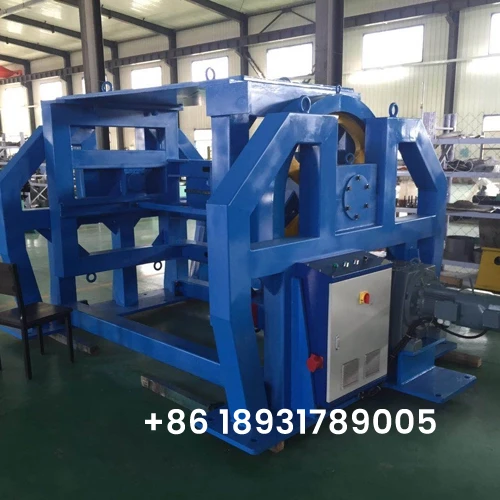

Full Automatic Distributed Gap Wound Core Forming Machine

The Ausin full-automatic distributed gap wound core forming machine provides a high-precision, automated solution for producing cores used in single-phase and three-phase distribution, instrument, and special transformers (e.g., Oil-immersed, Dry-type, Traction). Operating under advanced PLC control with an intuitive HMI, the wound core forming machine supports both single and double-strip feeding. It leverages servo technology for precision bending and cutting, delivering high speed and superior accuracy in a compact footprint. This system is engineered for medium-voltage applications, handling transformer cores from 10-35kV and 30kVA-3150kVA. Supporting equipment, such as slitting machines, core assembly systems, and turning tables, is also available from Ausin to work alongside the Wound core forming machine to create a fully integrated and efficient production line.

Full Automatic Distributed Gap Wound Core Forming Machine Specifications

Specifications

Model: JH400D

No.

Item

Data

1

Max. single silicon steel strip width

410mm

2

Max. Double silicon steel strip width

190mm

3

Bending speed

300ms per bend

4

Cutting speed

300ms per cut

5

Production speed about 2meter

6 seconds

6

Production capacity about eight hours

1500kg

7

Cutting precision

0~0.1mm for length <1m;

0.1~0.2mm for length >1m

8

Gap core increment

0.1mm

9

Motor power

Servo

10

Decoiler driving motor power

3kW, inverter control

11

Total length

7meter

12

Receiving rack

Automatic
