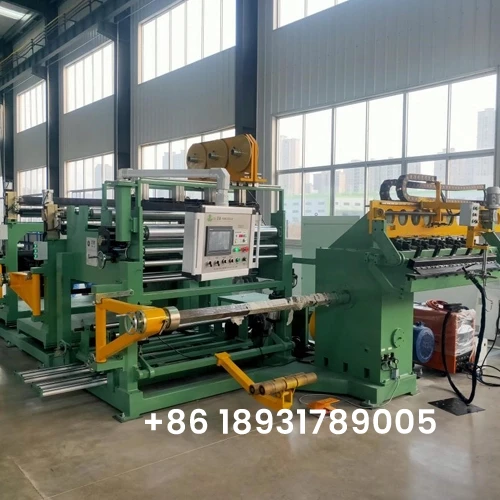

Foil Winding Machine For Low Temperature

This foil winding machine BRJ(S2)-1600 is the special equipment designed for either single layer or double layer LV aluminum foil winding and copper foil winding for transformers.

Full digital foil coil winding machine for winding transformer foil for low pressure coil.


Foil Winding Machine For Low Temperature Specifications

Advantage Model Equipment main part

Tension system, the foil winding machine by uncoiling tension, tension system to compare the advantages and the traditional passive tension stability, dynamic and static tension, foil tape and insulating layer with whether there is a tension winding or back on, avoid the loss caused by winding is differ, adjust air pressure size, guarantee the stability of the whole process of winding tension. The foil winding machine's adjusting system adopts photoelectric sensors, through the motor's dynamic action, a system of high precision, fast response, ensuring the winding coil end face and tidiness.

Because using compressed air to generate tension, the whole machine hydraulic system, the whole foil winding machine without consumables, fewer points of failure, reduces maintenance cost, fewer mechanical adjustment points, improves production efficiency, low noise, no pollution of hydraulic mechanical friction, and environmental protection.


BRJ-1600-2 style


  1. Uncoiling and rectifying device         (2 sets)

  2. Charging and wool pressing device     (2 sets)

  3. Cleaning device                       (2 sets)

  4. Deviation correction sensor device       (2 sets)

  5. Scissors device                       (1 sets)

  6. (insulation layer and winding device       (2 sets)

  7. End insulation unwinding device (3 sets left and 3 sets right)

  8. Welding device; (1 set (ac/dc argon arc welding machine/cooling water tank)

  9. Winding device                     (1sets)

  10. Winding and pressing device        (1sets)

  11. Layer insulation unwinding device    (2 sets)

  12. Winding and pressing roller, double cylinder is used for pressing

  13. Electrical control
