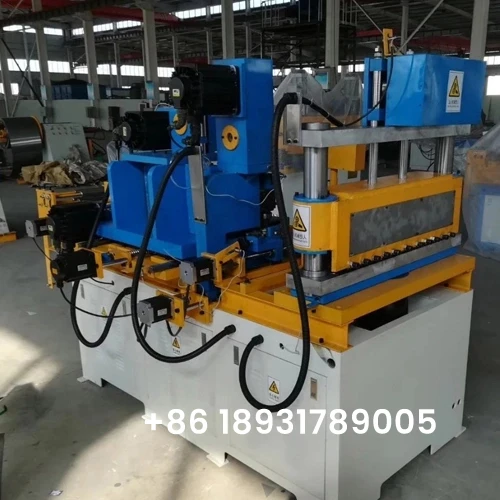

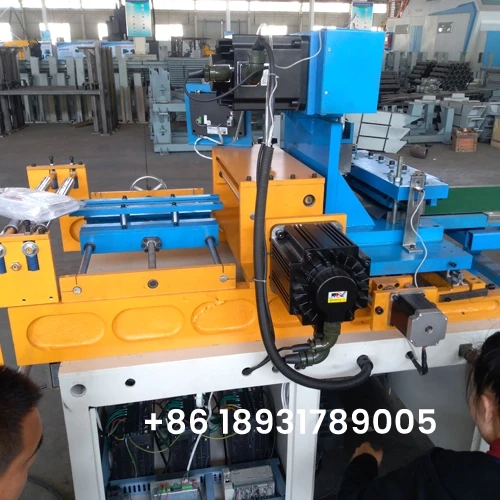

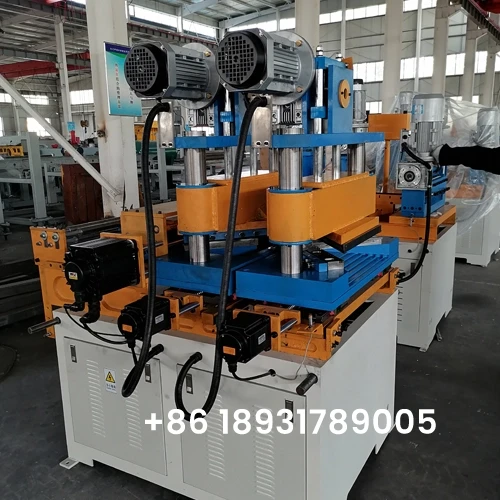

Center Limb Transformer Core Cutting Machine

Ausin center limb transformer core cutting machine is especially designed for cutting the center limbs of the power transformer core. Our center limb transformer core cutting machine can automatically cut the Center symmetric and center asymmetric central column core for transformer iron cores, and can punch holes at the same time. This center limb transformer core cutting machine is PLC-controlled and has touch screen operation. If the transformer core lamination length is 200~400mm, it can cut 40 pieces per minute. By utilizing high-precision carbide blades, the Center limb transformer core cutting machine ensures burr-free edges and exceptional dimensional accuracy for all types of high-performance transformer laminations.


Center Limb Transformer Core Cutting Machine Specifications

Structure Main technical data
  1. Inverter-controlled or hydraulics decoiler

  2. High speed feeding machine

  3. Cutting Device (two V-shape heads)

  4. Online hole punching device

  5. Control system PLC

  6. Belt transmitting table

  7. Stacking table

No.

Item

Data

1

Model Code

Model:JN-300/400/500/800-Z

2

CRGO thickness

0.23-0.6mm

3

CRGO coil width

40-800mm

4

CRGO strip Length

4m

5

Cutting length

200-90,000,000mm

6

Cut-to-length tolerance

+/-0.02mm

7

Cutting angle tolerance

+/-0.03°

8

Burr height

Less than 0.02mm

9

Feeding speed

Max. 100m/min

10

Cutting blade

Carbide alloy

11

Servo motors

Full servo imported brand
