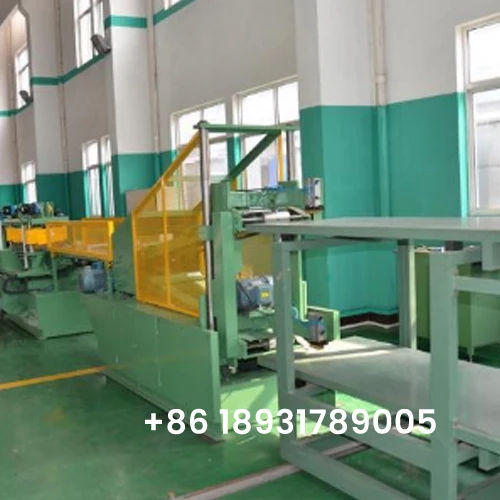

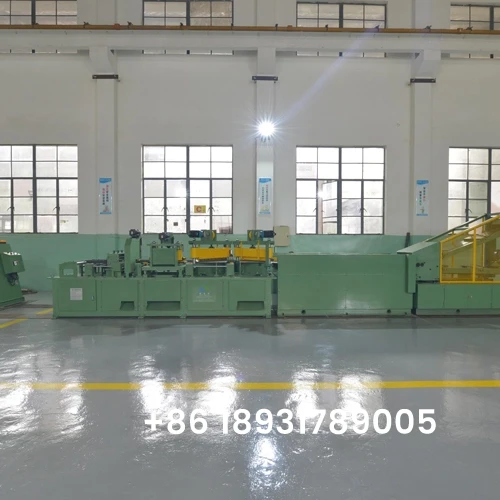

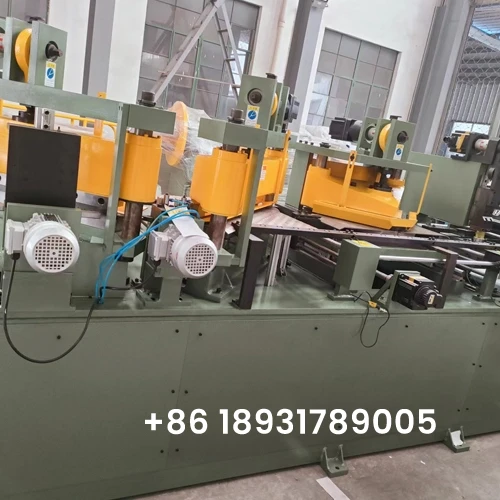

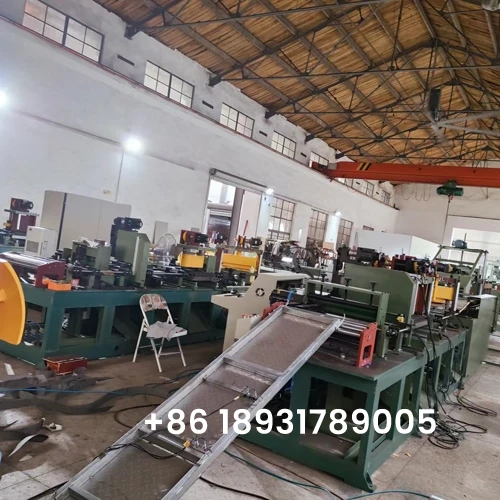

Automatic Two Cut Two Punch Silicon Steel Cut To Length Line

This cut to length line is a specialized device for processing transformer iron cores. This cut to length line includes material decoiler, guide buffer device, feeding machine, punching section, shearing section, conveyor, material handling device, pneumatic system, electrical control system. This horizontal cutting line adopts servo power and Delta's fully automatic motion control system. The punching and cutting are driven by high response servo motors. High efficiency, high precision, low noise, low failure rate, etc.


The feeding adopts an AC servo system and controller to achieve precise length. The intuitive color interface in both Chinese and English allows operators to easily input and correct parameters through the touch screen. Quantitative cutting processing, easily achieving accurate and precise drawing requirements. It can perform horizontal, vertical three, five, and seven step processing on iron core chips.


Automatic Two Cut Two Punch Silicon Steel Cut To Length Line Specifications

Model Main equipment parameters

HJX-LL300, HJX-LL400, HJX-LL500, HJX-LL600, HJX-LL800

1. Roll specifications

Applicable materials: Cold rolled oriented silicon steel coil

Material thickness: 0.23-0.35mm

Material width: 300mm/400mm/500mm/600mm/800mm


2. Requirements for the coil materials used in this production line

Width tolerance: ± 0.1mm Burr: ≤ 0.03mm


3. Finished product parameters

Fixed length: 350-9000mm

Fixed tolerance: ± 0.20mm at constant speed

Shear angle accuracy: ± 0.05 °

Cutting burrs: ≤ 0.02mm

Punching burrs: ≤ 0.02mm


4. Service life

Tool life: not less than 1 million times per first grinding, made of hard alloy material

Die life: not less than 200000 to 300000 times (per blade grinding), made of hard alloy material


5. Power supply: 380V/50Hz

E.g.: Installed capacity: approximately 20KW for 40-300mm width machine.

This cut to length line can equipped with automatic stacking device, no error on separating different kind of lamination strips, especially step-lap cut strips.
