Automatic Swing Shear Transformer Core Cut To Length Line

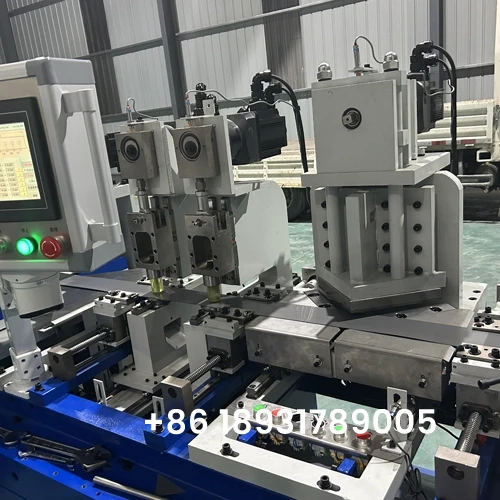

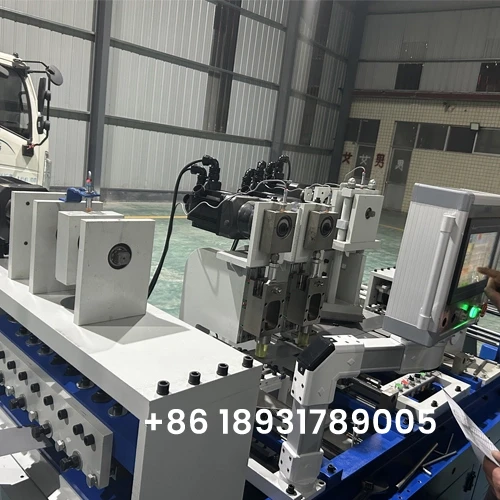

Automatic swing shear CNC cut to length line for electrical sheet coils for transformer special equipment. This CTL machine is for processing transformer iron cores and reactor cores. Ausin cut to length equipment adopts a servo motor power, a Delta automatic motion PLC control system to achieve precise length, and a Delta Human Machine Interface 5",7". The CTL machine operator can easily complete parameter input and correction through the touch screen. The iron core can be processed horizontally and vertically in seven seven-step laps. The feeding adopts the AC servo control system and central positioning. Punching and cutting are driven by high-response servo motors with the advantage of high efficiency and precision, low noise, and low failure rate.

Automatic Swing Shear Transformer Core Cutting Line

Technical Specifications Machine construction Model

Type

AN-4003

AN-5003

AN-6003

CRGO coil width

40-400mm

50-500mm

50-600mm

Cutting length

5m max

5m max

5m max

CRGO thickness

0.23-0.6

0.23-0.6

0.23-0.6

Cut-to-length precision

±0.2mm

±0.2mm

±0.2mm

Burr height

≤0.02mm

≤0.02mm

≤0.02mm

Cutting angle precision

±0.025°

±0.025°

±0.025°

Feeding Speed

0-240m/min

0-240m/min

0-240m/min

Hole numbers

1-12

1-12

1-12

Cutting speed

30-60pcs/minutes

30-60pcs/minutes

30-60pcs/minutes

Cutting/punching tool life

Carbide alloy materials,1,200,000 times before grinding

Step-lap quantities

1, 2, 3, 4, 5, 6, 7

Max. step-lap stroke

40mm

Positioning method

Central line positioning

HMI and Motor

Delta


  1. Hydraulic decoiler

  2. Automatic center positioning & guiding devices

  3. Full servo feeding device, high speed

  4. O-punching device

  5. V-notch device

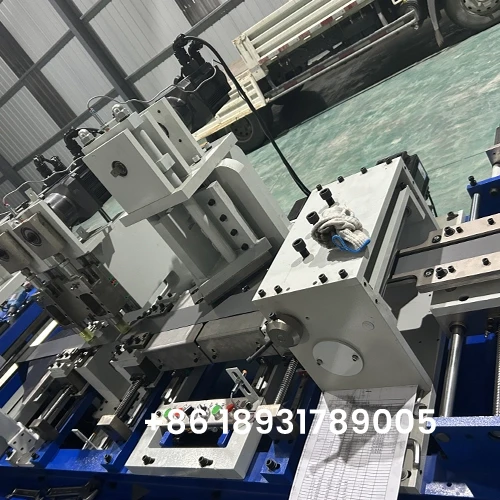

  6. Swing Cutting Device

  7. Transmitting belt and Pneumatic flap rack.

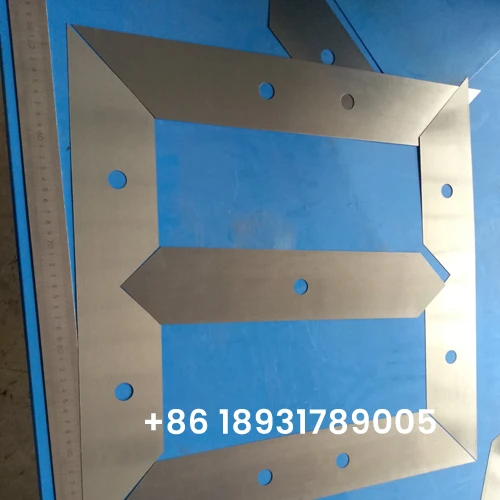

Note: The conveyor belt is used to transport the material to the receiving rack of the CTL machine. This receiving rack will naturally separate the left and right sides according to the shape of the pieces at different positions based on two oblique angles, and arrange the materials neatly for subsequent stacking.

AN3003VD, AN4003VD, AN5003VD, AN6003VD, AN8003VD


Automatic Swing Shear Transformer Core Cut To Length Line Video

Automatic Swing Shear Transformer Core Cut To Length Line Video
GET A SOLUTION RIGHT NOW
SEND US YOUR DRAWING,WE CAN MAKE TO ORDER PERSONALIZED
