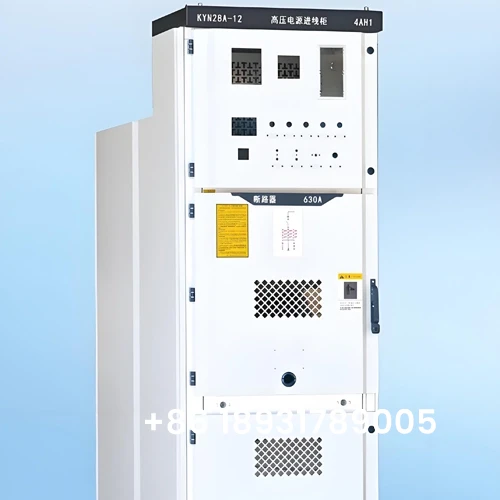

Armored Removable AC Metai-enclosed Switchgear Cabinet

KYN28-24 armored removable AC metal-enclosed switchgear is a three-phase Ac 50Hz, rated voltage 24kV indoor power distribution unit. As a power plant, substation and industrial and mining enterprises to accept and distribute electrical energy, the circuit to control, protect and monitor functions.


Armored Removable AC Metai-enclosed Switchgear Cabinet Specifications

Structure Use

The switchgear is designed according to the requirements of GB3906 and IEC62271-200:2003. The whole body is composed of two parts: the

cabinet body and the extractable part (handcart). The structure of the cabinet body is assembled by bolting aluminum-zinc plate bolts, and the interior of the switch cabinet is divided into the circuit breaker room and the main bus room by metal partitions. Cable compartment and relay instrument room, and all metal components are reliably grounded. Each compartment of the main loop system has independent pressure

release channels. A 10x60mm grounding busbar can be installed in the cable compartment


  1. Simple and effective "five-proof" blocking to prevent misuse.

  2. can be used with vS1, W1, vD4, 3AH and other vacuum circuit breakers.

  3. It can be equipped with a voltage transformer handcart, isolation handcart, fuse handcart, etc., and the handrail of the same purpose can be interchanged

  4. the cabinet is reliable wall installation, front cabinet maintenance, reducing the floor space

  5. A heater can be installed separately in the circuit breaker room and the cable room to prevent condensation and corrosion from occurring.

  6. the cable room is abundant and can connect multiple cables.

  7. The protection level of the enclosure reaches Ip4X. When the circuit breaker door is opened and the protection level between each compartment is IP2X.

  8. the material can be made of galvanized sheet or aluminum zinc plate.
