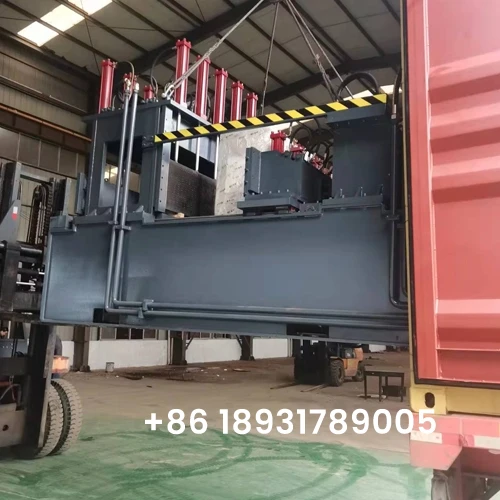

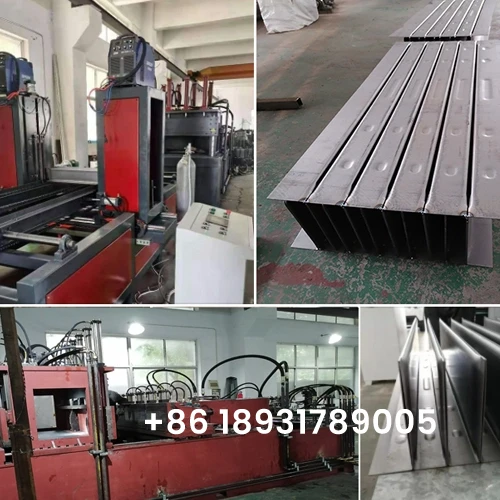

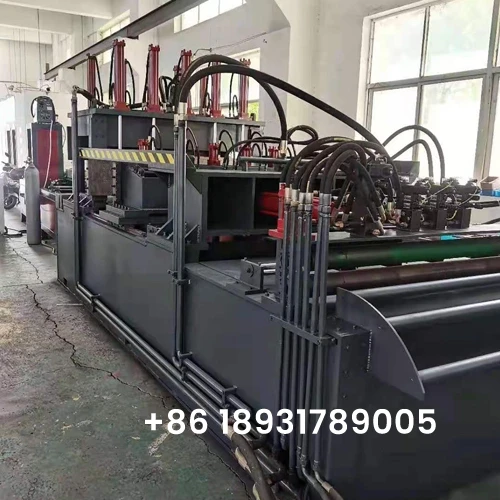

1600 Heavy Corrugated Tank Forming Machine

The Heavy corrugated tank forming machine line produced by our company has an overall structure of a fully automatic PLC control system plus a hydraulic system, with a four-column bed reinforcement structure independently developed by the company. Among the components of the entire electronic control system powering the corrugated fin forming machine, switches, knobs, relays, and contactors are reliable Schneider brands, proximity switches are famous brands, the PLC uses Mitsubishi controllable PLC, and the human-machine touch screen and 1.5KW servo drive are all imported brands from Taiwan (Delta).

1600 Heavy Corrugated Tank Forming Machine Specifications

Product Highlights Specifications

Advanced Hydraulic System


Our heavy corrugated tank forming machine is powered by an advanced hydraulic system. It utilizes precisely controlled fluid pressure to accumulate, transmit, and amplify energy, ensuring efficient and powerful mechanical operation.


Unparalleled Structural Integrity


To guarantee exceptional stability and eliminate common manufacturing defects, the radiator fin forming machine's bed reinforcement structure is engineered to the highest standards:

  • High-Grade Materials: The columns, dynamic molds, and mold base plates are all constructed from premium 500-grade ductile iron.

  • Integral Guide Rails: The bed guide rails are integrally formed as a single, solid piece.

This robust design prevents common issues such as misalignment, warping, and inconsistent gaps.


A Sound Investment


Investing in our fin forming machine is a strategic decision. It not only boosts your product quality and production speed but also offers excellent value preservation, ensuring a high residual value throughout its service life.


Steel Plate Width B:300-1600mm
Steel plate Thickness S:0.5-1.75mm
Corrugation Height H:50-400mm
Corrugation Pitch t:≥40mm
Corrugation Band Length L:≤2000mm
Net Clearance Between Corrugations e:>4mm
Length of Box Board tips(rear gap) b:≥30mm
Length of Box Board tips(front gap) a:≥30mm
Folding Height C:15~300mm
Number of Corrugation Band Sets n:1~4sets
Molding speed:3~4pcs/min
Total Weight:17000KG
Covering Space:9m*7m
Voltage:three-phase 380V
Total Power of Motors:32kw


Optional Feature: Reinforcement Rib Embossing

Ausin corrugated fin forming machine can be equipped with a reinforcement rib (stiffener) embossing function to increase the structural strength of the corrugated panels. Related tooling and templates are included.
